Product Description

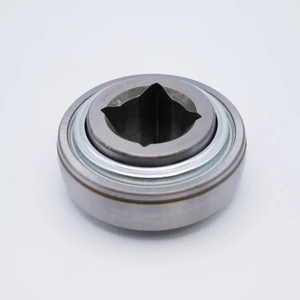

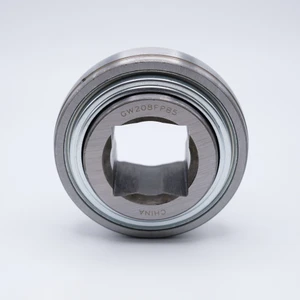

W209PPB5 Disc Harrow Ball Bearing
Key Features
W209PPB5 is a Triple Seal Disc Harrow Insert designed for agricultural applications. This bearing is a Non-relubricatable type bearing and features a Square Bore with Spherical Outer Diameter. This bearing comes pre-lubricated with grease, which allows it to be ready for immediate use upon delivery.
Applications / Industries
W209PPB5 Harrow Ball Bearings are used in a range of agricultural applications from Tillage to Hay Balers Peanut Combines, Planters, Harvesters, Electric Motors, Disc Harrows, Grain Augers, Rotary Cutters, Mowers, Sprayers, Fertilizers, Feed Mixers, Manure Spreaders, among others.
Product Videos
Custom Field
Inner Diameter 1-1/4"
Outer Diameter 85mm
Width 30.2mm
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 4,550 lbf
Dynamic Load 8,300 lbf
Speed Limit 800 RPM
Country of Origin China
Interchange Numbers DS209TT5, W209PPB5, 20S2-209E3, 2AS09-1-1/4, JD8664
