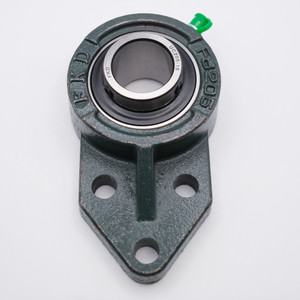

  • 1" bore UCFB205-16 Bracket 3-Bolt Flange Unit Front View
  • 1" bore UCFB205-16 Bracket 3-Bolt Flange Unit Back View
  • 1" bore UCFB205-16 Bracket 3-Bolt Flange Unit Side View
  • 1" bore UCFB205-16 Bracket 3-Bolt Flange Unit Side View
  • 1" bore UCFB205-16 Bracket 3-Bolt Flange Unit Side View
  • 1" bore UCFB205-16 Bracket 3-Bolt Flange Unit Side View
  • 1" bore UCFB205-16 Bracket 3-Bolt Flange Unit Side View

    • 1" bore UCFB205-16 Bracket 3-Bolt Flange Unit

    AMPEC

    $17.23
    (1 review) Write a Review
    SKU:
    UCFB205-16
    Availability:
    Usually ships in 24 hours.
    Bulk Pricing:
    Buy in bulk and save

    Bulk discount rates

    Below are the available bulk discount rates for each individual item when you purchase a certain amount

    • Buy 10 - 24 and get 5% off
    • Buy 25 - 49 and get 10% off
    • Buy 50 or above and get 15% off
    Adding to cart… category.add_cart_announcement
    Inner Diameter:
    1"
    Overall Length:
    2-43/64"
    Overall Height:
    4-9/16"
    Bolt Hole to Bolt Hole:
    1-11/32"
    Base to Center:
    1-49/64"
    Housing Material:
    Cast Iron
    Insert Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    1,810 lbf
    Dynamic Load:
    3,154 lbf
    Speed Limit:
    6,250 RPM
    Country of Origin:
    China
    Interchange Numbers:
    MFB-1, UCFH205-16D
    Request for Quote:
    Click Here

    Product Description

    UCFB205-16 3-Bolt Flange Unit

    Key Features

    UCFB205-16 3-Bolt Flange Bearing Unit has a combination of a cast iron 3-bolt bracket flange unit and a chrome steel set screw locking insert bearing. This specific 3-Bolt Flange Bearing Unit has a shape of a chevron flange which has a special configuration on conveyors. The insert ball bearing has been made with a wide inner ring and has been equipped with two set screws, located on the extended inner ring, for the attachment of a shaft. Our Mounted Block Units are pre-lubricated with Grease, allowing them to be ready for immediate use upon arrival.

    Applications / Industries

    UCFB205-16 Mounted Blocks are used in a variety of applications such as Construction Equipment, Pumps, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, HVAC Systems, Feed Mills, Agricultural Equipment and other Industrial Equipment.

    Product Videos

    Custom Field

    Inner Diameter 1"
    Overall Length 2-43/64"
    Overall Height 4-9/16"
    Bolt Hole to Bolt Hole 1-11/32"
    Base to Center 1-49/64"
    Housing Material Cast Iron
    Insert Material Chrome Steel SAE-52100
    Lubrication Chevron SRI-2 Grease
    Static Load 1,810 lbf
    Dynamic Load 3,154 lbf
    Speed Limit 6,250 RPM
    Country of Origin China
    Interchange Numbers MFB-1, UCFH205-16D
    Request for Quote Click Here
