Product Description

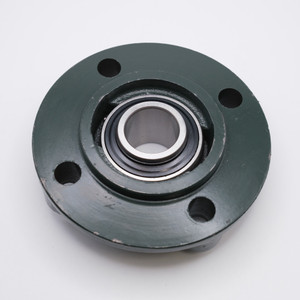

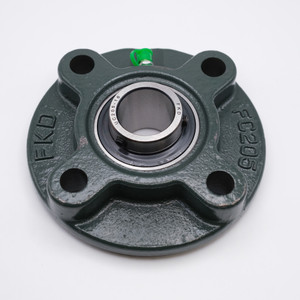

UCFC205-16 Round Flanged 4-Bolt Unit Bearing
Key Features
UCFC205-16 is a UCFC200 Cast Iron 4-Bolt Round Flange Housing with a Set Screw Locking Insert Ball Bearing. This UCFC205-16 Cast Iron 4 Bolt Flange Unit features two set screws found on the extended end of the inner ring on the insert which are used to attach and lock onto sliding shafts. This unit is also equipped with Grease Feeding Access to allow for re-lubrication of the bearing. Our Mounted Block Units are pre-lubricated with grease to allow it to be ready to use upon arrival.
Applications / Industries
UCFC205-16 Mounted Blocks are used in a variety of applications such as Agriculture, Automotive, Printer, Pump, Sporting and Consumer Goods, Construction, Manufacturing Equipment, Conveyor and Fan Assemblies, and light and heavy industrial use.
Product Videos
Custom Field
Inner Diameter 1"
Overall Length 4-17/32"
Bolt Hole to Bolt Hole 2-1/2"
Housing Material Cast Iron
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,810 lbf
Dynamic Load 3,154 lbf
Speed Limit 6,250 RPM
Country of Origin China
Interchange Numbers SFC-16, UCFC205-100T, UCFC205-16, UCFC205-16NP, VFC-216, FC-SC-100, UCFC205-100D1
