Product Description

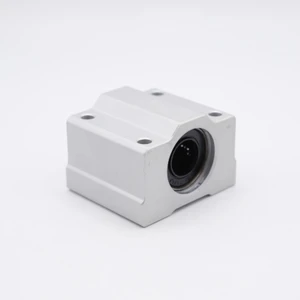

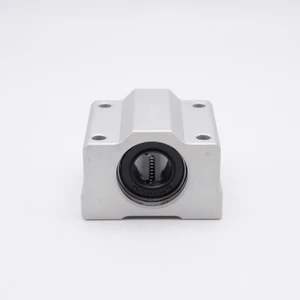

SC12UU Pillow Case Linear Bearing Sealed
Key Features
SMA12UU Bearing is a Precision Slide Pillow Block Linear Ball Bushing Unit with Rubber Seals on both sides and a Resin Retainer. This SMA12UU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the LM12UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Grease allowing them to be ready to use upon arrival.
Applications / Industries
This SMA12UU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 12mm
Overall Length 36mm
Overall Width 42mm
Overall Height 28mm
Base to Center 15mm
Bolt Hole to Bolt Hole (Width) 30.5mm
Bolt Hole to Bolt Hole (Length) 26mm
Bolt Hole Size M5x12
Insert Bearing Material Chrome Steel SAE-52100
Housing Material Aluminum Alloy
Lubrication Light Oil
Static Load 133 lbf
Dynamic Load 92 lbf
Country of Origin China
Interchange Numbers SMA12UU, SC12UUN, SCS12UU, SMA12-UU
