Product Description

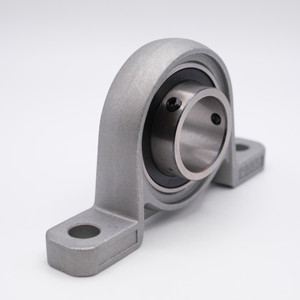

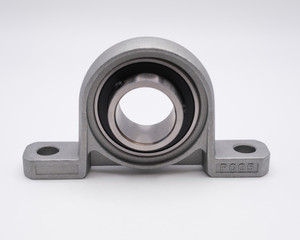

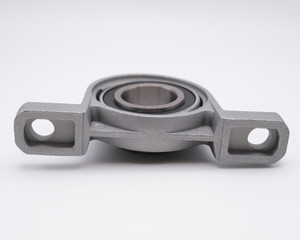

KP002 Pillow Block Bearing
Key Features
KP002 Pillow Block Bearing is a Miniature Zinc Alloy Pillow Block with a Set Screw Locking Insert Ball Bearing. This unit features two Set Screws positioned 120° apart on the inner ring of the insert which can be tightened to lock onto a shaft, maximizing holding power while minimizing inner ring distortion. Our KP002 Miniature Mounted Blocks are pre-lubricated with Grease, ensuring they are ready for use upon delivery.
Applications / Industries
KP002 Pillow Block Ball Bearings are widely used in various Robotic Systems, HVAC Systems, Food Processing Machinery, Pharmaceutical Machinery, Conveyor Systems, Film Processing Machinery, Fitness Equipment, Office Equipment, among others.
Product Videos
Custom Field
Inner Diameter 15mm
Overall Height 38mm
Overall Length 80mm
Bolt Hole to Bolt Hole 63mm
Base to Center 22mm
Housing Material Zinc Alloy
Insert Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 6 lbf
Dynamic Load 12 lbf
Speed Limit 16,000 RPM
Country of Origin China
Interchange Numbers KP02UU, KP02U, KP002RS, KVP002LL, KP002-2RS, UP002UU
