Product Description

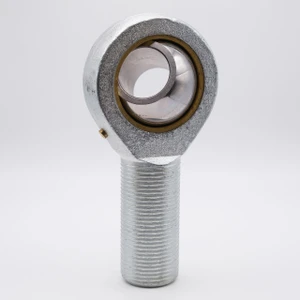

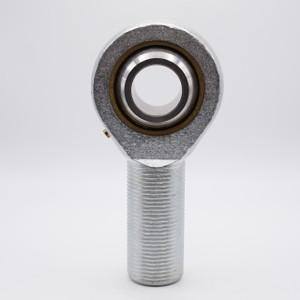

POS16 Rod-End Bearing
Key Features
POS16 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POS16 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank. POS16 Rod-End Bearings are used in applications such as steering linkages, agricultural machinery, and textile manufacturing equipment, among others.
Applications / Industries
POS16 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, and Textile Manufacturing Equipment, Conveyor Systems, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 16mm
Base to Center 66mm
Overall Height 85mm
Outer Diameter 38mm
Thread Size M16
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated Housing with Brass Cage
Lubrication Light Oil
Static Load 5,710 lbf
Dynamic Load 4,721 lbf
Country of Origin Japan
Interchange Numbers GAKFR16PB, SAKAC16M, SM16, SA16TK, GAKR16PB, SM-16, CM-M16, CM-M16Z, DWTM16, MM-M16, AM-M16, POS-16NP, GAKR16-PB, EM-M16, MCMR16, GAKFR16-PB4
