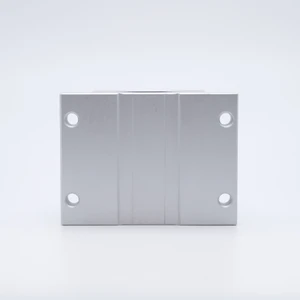

SWA32UU Pillow Block Linear Motion Bearing
Key Features
SWA32UU Bearing is a Precision Slide Pillow Block Linear Ball Bushing Unit with Rubber Seals on both sides and a Polyamide Retainer. This SWA32UU is used for high accuracy systems and any application where smooth linear motion is needed. The housing is made from aluminum alloy and uses the SW32UU Linear Ball Bushing as an insert. Our Linear Bearings are pre-lubricated with Grease allowing them to be ready to use upon arrival.
Applications / Industries
This SWA32UU Linear Bearing is widely applied to Electronic Equipment, Food Processing Industry, Packaging, Medical Machinery, Printing Industry, Textile Industry, Robotics, Automotives, 3D Printing, among other applications requiring smooth linear motion.
Product Videos
Custom Field
Inner Diameter 2"
Overall Length 5"
Overall Width 6"
Overall Height 4-1/16"
Base to Center 2-1/8"
Block Width 4-1/2"
Bolt Hole to Bolt Hole (Width) 5-1/4"
Bolt Hole to Bolt Hole (Length) 3-1/4"
Bolt Hole Size 13/32"
Insert Bearing Material Chrome Steel SAE-52100
Housing Material Aluminum Alloy
Lubrication Light Oil
Static Load 1,786 lbf
Dynamic Load 860 lbf
Country of Origin China
Interchange Numbers TWA32UU, SPB-32, KGNZ32PP, XEP-32, SWA32-UU, TWA32U, TWA32
