Product Description

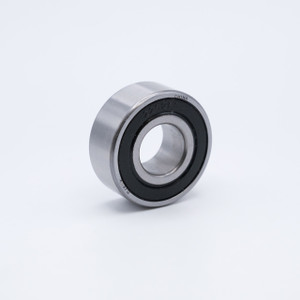

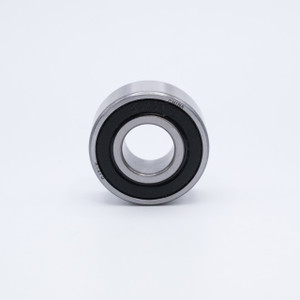

2209K-2RS Self Aligning Ball Bearing
Key Features
2209K-2RS is a Precision ABEC1 Self Aligning Ball Bearing with a tapered bore, both sides Rubber Sealed and is pre-lubricated with Grease allowing for use upon delivery. Our 2200 Series Self Aligning Ball Bearings have two rows of balls with a common, sphered raceway and permit angular misalignment of the shaft. This allows for applications subject to shaft deflections or misalignments between the shaft and housing.
Applications / Industries
2209K-2RS Self Aligning Tapered Ball Bearings are used in a range of applications from Pumps, Compressors, Conveyor Systems, Printing Machinery, Agricultural Machinery, Construction Equipment, Material Handling Equipment, Gearboxes, Robotics, Wind Turbines, HVAC Systems, among others.
Product Videos
Custom Field
Inner Diameter 45mm
Outer Diameter 85mm
Width 23mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,466 lbf
Dynamic Load 4,190 lbf
Speed Limit 5,300 RPM
Country of Origin Romania
Interchange Numbers 2209EEG15, 2209-2RS-TV, 2209RS, 2209.2RS1, 2209-2RS
