Product Description

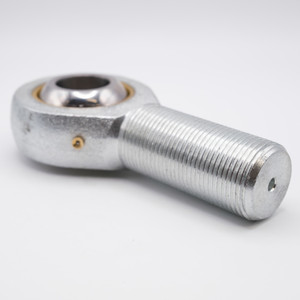

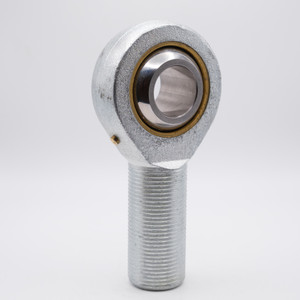

POSB6L Rod-End Bearing
Key Features
POSB6L Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB6L bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
POSB6L Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, and Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, Go-Karts, Radio Control Helicopters, and Formula Cars, among others.
Product Videos
Custom Field
Inner Diameter 3/8"
Outer Diameter 1"
Overall Height 2-7/16"
Base to Center 1-15/16"
Thread Size -24UNC
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100.
Housing Material Nickel Plated
Lubrication Light Oil
Static Load 4,856 lbf
Dynamic Load 2,075 lbf
Country of Origin Japan
Interchange Numbers HML6, HML6G, TREL-6, TREL6N, TREL-6N, MB-6, MB-6Z, POSB6LZ
