Product Description
35-BC Tapered Roller Cone
Key Features

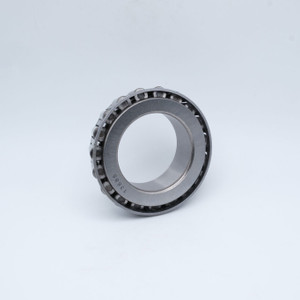

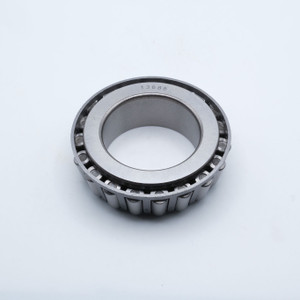

35-BC Tapered Roller Bearings consist of a single piece cone made up of the rollers and cage assembly. This part of the bearing is detachable and can be paired with a cup, the cone assembly is narrower in one end and the races are built with one side narrower as well to match the rollers. This design makes this bearing capable of supporting heavy loads in both axial and radial directions. Our 35-BC Tapered Roller Bearings are ideal for environments where high speed and heavy loads occur, and low friction is needed.
Applications / Industries
35-BC Tapered Roller Bearings are designed for many applications such as Gearboxes, Hoisting Equipment, Rolling Mills, Mining Industry Machines, Steer axle, Drive axles, Pusher axles, Tag axles, Engines, and Propellers.
Product Videos
Custom Field
Inner Diameter 1-23/32"
Width 0.54"
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 3,575 lbf
Dynamic Load 2,448 lbf
Speed Limit 13,000 RPM
Country of Origin China
Interchange Numbers 35BC, 35-BC
