Product Description

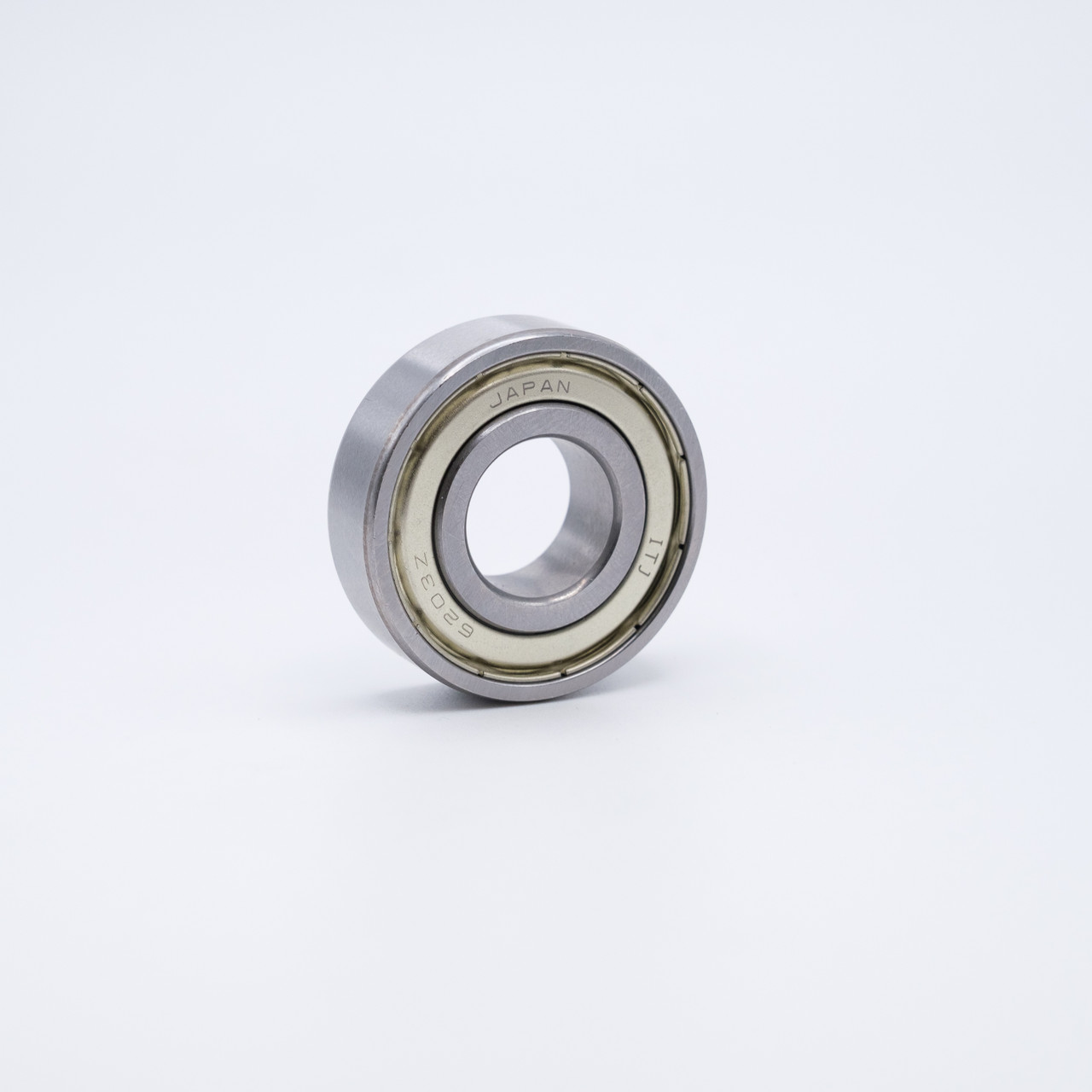

6203-ZZC3 bearing is a Precision Radial Ball Bearing with C3 Internal Clearance, both sides Metal Shielded and is pre-lubricated with grease allowing it to be ready for use upon delivery.
Sizes: ID 17mm x OD 40mm x W 12mm
Interchange Numbers: 6203ZC3, 6203 2ZC3, 6203SSC3, 6203ZZC3, 6203-2Z/C3J1, 203KSFF, 203KDDC3, 77203, 1L016, 5972K2, 6153K57, 6203.2ZR.C3, 6203ZZCM
Applications: 6203-ZZC3 Metric Ball Bearings are used in a range of applications from Electric Motors to Washing machines, Belt Drives, Compressors, Pumps, Turbines, Printing And Textile Machines, Automotive, Conveyors, Light-duty Industrial Applications, Engines, Small Spindles, Food processing, Power Transmission, Rolling Mills, Among Others.
Product Videos
Custom Field
Inner Diameter 17mm
Outer Diameter 40mm
Width 12mm
Closure Type Metal Shielded
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,100 lbf
Dynamic Load 2,200 lbf
Speed Limit 24,000 RPM
Country of Origin Japan
Interchange Numbers 6203ZC3, 6203 2ZC3, 6203SSC3, 6203ZZC3, 6203-2Z/C3J1, 203KSFF, 203KDDC3, 77203, 1L016, 5972K2, 6153K57, 6203.2ZR.C3, 6203ZZCM
