Product Description

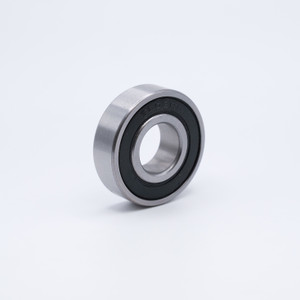

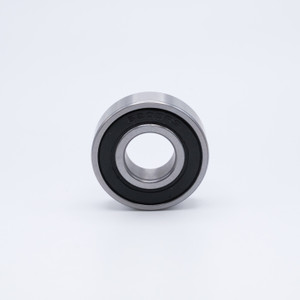

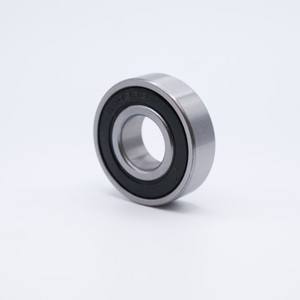

63/22-2RSC3 Odd Special Sized Metric Ball Bearing
Key Features
63/22-2RSC3 is an Odd Sized Special Precision Single Row Radial Ball Bearing manufactured with C3 Internal Clearance, Rubber Seals on both sides, and is pre-lubricated with Grease allowing it to be ready for use upon delivery. C3 Internal Clearance means that the bearing has room for expansion between the races if needed. Made from Chrome Steel, 63/22-2RSC3 features a special 28mm Wider Ball Bearing that can withstand both moderate radial and axial loads while providing high performance.
Applications / Industries
63/22-2RSC3 Odd sized bearings have a wide variety of uses including Electric Motors and Automotives, Motorcycles, Alternators, Starters, Fans, High Speed Applications, Check Valves, Automotive Parts, and much more.
Product Videos
Custom Field
Inner Diameter 22mm
Outer Diameter 56mm
Width 16mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 2,080 lbf
Dynamic Load 4,100 lbf
Speed Limit 12,000 RPM
Country of Origin China
Interchange Numbers 63/22-2RSC3, 63-22-2RSC3
