Product Description

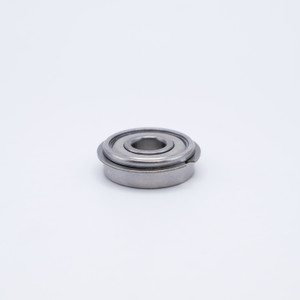

6309-2ZNR Ball Bearing
Key Features
6309-2ZNR is a Precision Metric Ball Bearing manufactured with a Snap Ring, Metal Shields on both sides and pre-lubricated with Grease, allowing for use upon delivery. Made from Chrome Steel, 6309-2ZNR is a Metric Ball Bearing that can withstand both moderate radial and axial loads while providing high performance. Our 6300 Series Metric Ball Bearings are available with Open, Metal Shielded, and Rubber Sealed Closures and are pre-lubricated with grease or light oil.
Applications / Industries
6309-2ZNR Metric Ball Bearings are ideal for heavier load capacity applications such as Electric Motors, Agricultural Machinery, Robotics, Tractors, Textile Machinery, Power Tools, among others.
Product Videos
Custom Field
Inner Diameter 45mm
Outer Diameter 100mm
Width 25mm
Closure Type Metal Shielded
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 7,200 lbf
Dynamic Load 11,900 lbf
Speed Limit 6,700 RPM
Country of Origin China
Interchange Numbers 6309ZNR, 6309.2ZNR, 6309.2ZJ1NR, 309KDDG, 77309NR, 6309ZZNR, 6309.2ZR.NR
