Product Description

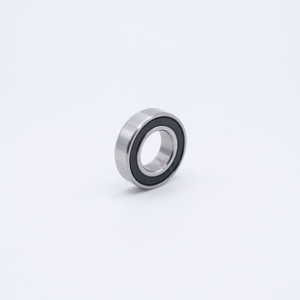

63800-2RS Ball Bearing
Key Features
63800-2RS is an Extra Thin High Speed Ball Bearing manufactured with Rubber Seals on both sides and is pre-lubricated with Grease, allowing it to be ready for use upon delivery. Our 6800 Series Extra Thin Ball Bearings inside and outside diameters of the rings have been minimized or thinned out making them ideal for applications with space limitations while still being able to accommodate light radial thrusts or combined loads.
Applications / Industries
63800-2RS Extra Thin High Speed Ball Bearings are used in applications requiring high speeds in limited space such as Textile Machines, Small Motors, Robotics, Printing Machines, Security Cameras, Clutches, Drives, Gearboxes, among other.
Product Videos
Custom Field
Inner Diameter 10mm
Outer Diameter 19mm
Width 7mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 208 lbf
Dynamic Load 410 lbf
Speed Limit 30,000 RPM
Country of Origin China
Interchange Numbers MR1910-2RS, 63800-2RS, 63800RS, 638002RS
