Product Description

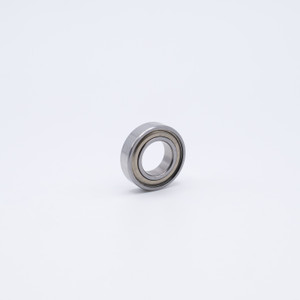

6809-ZZ Ball Bearing
Key Features
6809-ZZ is an Extra Thin High Speed Ball Bearing manufactured with Metal Shields on both sides and is pre-lubricated with Grease, allowing it to be ready for use upon delivery. Our 6800 Series Extra Thin Ball Bearings inside and outside diameters of the rings have been minimized or thinned out making them ideal for applications with space limitations while still being able to accommodate light radial thrusts or combined loads.
Applications / Industries
6809-ZZ Extra Thin High Speed Ball Bearings are used in applications requiring high speeds in limited space such as Textile Machines, Small Motors, Robotics, Printing Machines, Clutches, Drives, Gearboxes, among other.
Product Videos
Custom Field
Inner Diameter 45mm
Outer Diameter 58mm
Width 7mm
Closure Type Metal Shielded
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 1,270 lbf
Dynamic Load 1,419 lbf
Speed Limit 10,000 RPM
Country of Origin China
Interchange Numbers 6809Z, 6809 2Z, 6809 ZZ, 6809.2ZJ1
