Product Description

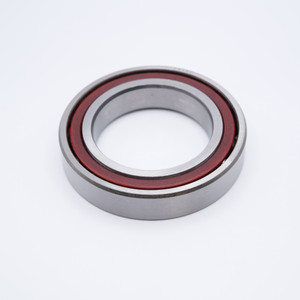

7003CP4 Precision Angular Ball Bearing
Key Features
7003CP4 is an ABEC7 Precision Angular Contact Ball Bearings with a 15 Degree Phenolic Cage. 7003CP4 features an ABEC7 precision rating, making this bearing capable of higher speeds while also maintaining high precision. Phenolic cages are lightweight and strong making them ideal for high speed applications and 15 Degree angular contact bearings deliver more dial capacity and performance. 7003CP4 also has Universal Mounting and comes pre-lubricated with Light Oil.
Applications / Industries
7003CP4 Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills, among others.
Product Videos
Custom Field
Inner Diameter 17mm
Outer Diameter 35mm
Width 10mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 770 lbf
Dynamic Load 1,530 lbf
Speed Limit 33,000 RPM
Country of Origin China
Interchange Numbers B7003CP4, 103KR-BKE7, 7003x2, 7003DGLP4, 3MM9103WI-CR, 7004CT1, 7003CSTULP4, 7003X2TAP4, S6003CTA7, EX17CEL, QOl03DTl7
