Product Description

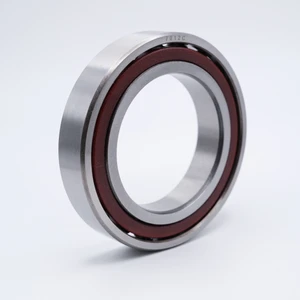

7004C Angular Contact Ball Bearing
Key Features
7004C is an ABEC1 Precision Angular Contact Ball Bearing with a 15 Degree Phenolic Cage. 7004C is made from high-quality chrome steel and features a light weight Phenolic cage, making this bearing ideal for high speed applications requiring high precision and accuracy. 7004C also has Universal Mounting and comes pre-Lubricated with Light Oil.
Applications / Industries
7004C Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 20mm
Outer Diameter 42mm
Width 12mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 1,350 lbf
Dynamic Load 2,600 lbf
Speed Limit 28,000 RPM
Country of Origin China
Interchange Numbers B7004C, 104KR, 7004X2, 7004DGL, 9104WI-CR, 7004CT1, 7004C, 7004X2TA, S6004CTAa, EX20CE1
