Product Description

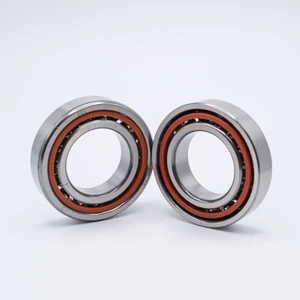

7009CTDULP4 Angular Contact Ball Bearing
Key Features
7009CTDULP4 is a Precision Angular Contact Ball Bearing with ABEC5 or P5 Precision Rating, and a 15 Degree Phenolic Cage. Phenolic cages are lightweight and strong making them ideal for high speed applications and 15 Degree angular contact bearings deliver more dial capacity and performance. 7009CTDULP4 also has Universal Mounting and comes pre-Lubricated with Light Oil.
Applications/Industries
7009CTDULP4 Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 45mm
Outer Diameter 75mm
Width 16mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 4,330 lbf
Dynamic Load 6,080 lbf
Speed Limit 15,000 RPM
Country of Origin Europe/Japan
Interchange Numbers 2MM9109WI, 7009UC, 7009CTYNDULP4, 109KRDU, 7009X4DU, B7009CP4, 109KR, B7009CTPAP4ULDS-BKE#7, 109KR-BKE#7, B7009CTPAP4UL, B7009EP4UL, 7009CDP4ADGA, 7009X2DU, 7009CUYGLP4
