Product Description

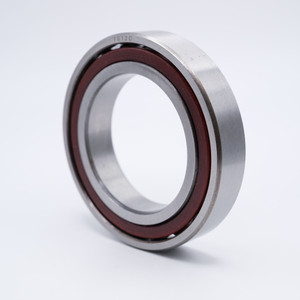

7209B Angular Contact Ball Bearing
Key Features
7209B is an ABEC1 Precision Angular Contact Ball Bearing with a 40 Degree Phenolic Cage. Phenolic cages are lightweight and strong making them ideal for high speed applications and the 40 degree angular contact provides an increase in thrust load capacity relative to the inner and outer raceways. 7209B also have Universal Mounting, and comes pre-Lubricated with Light Oil.
Applications / Industries
7209B Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Feed Screw Mechanisms, Ball Screw Support Units, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 45mm
Outer Diameter 85mm
Width 19mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 6,180 lbf
Dynamic Load 7,300 lbf
Speed Limit 9,400 RPM
Country of Origin China
Interchange Numbers 7209TVP, 7209BTN, 7209BTVP, 7209B.TVP, 7209-B-TVP
