Product Description

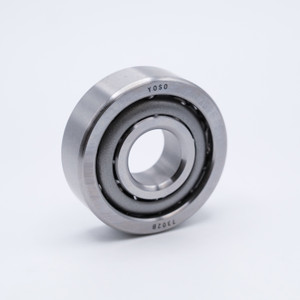

7303B Angular Contact Ball Bearing
Key Features
7303B is a Precision Angular Contact Ball Bearing with a 40 Degree Steel Cage. This bearings steel cage is ideal for load demanding applications and its 40 degree angular contact provides an increase in thrust load capacity relative to the inner and outer raceways. 7303B also has Universal Mounting and comes pre-Lubricated with Light Oil.
Applications / Industries
7303B Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 17mm
Outer Diameter 47mm
Width 14mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 1,900 lbf
Dynamic Load 3,800 lbf
Speed Limit 18,000 RPM
Country of Origin Japan
Interchange Numbers 7304B/DF, 7303AC/DB, 7304B/DF, 7304B/DF, 7303AC/DT, 7303B/DB, 7303AC/DF, 7303C/DT, 7303AC/DB, 7303B/DT
