Product Description

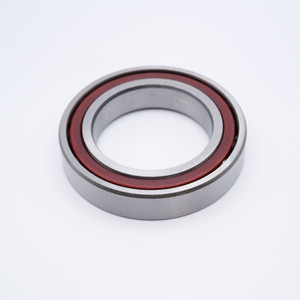

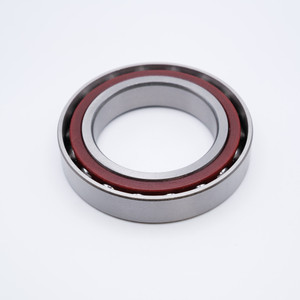

7308A Angular Contact Ball Bearing
Key Features
7308A is a Precision Angular Contact Ball Bearing with a 30 Degree Phenolic Cage. Phenolic cages are lightweight and strong making them ideal for high speed applications 30 degree angular contact bearings are capable of withstanding both radial and axial loads. 7308A also has Universal Mounting and comes pre-lubricated with Light Oil.
Applications / Industries
7308A Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills, among others.
Product Videos
Custom Field
Inner Diameter 40mm
Outer Diameter 90mm
Width 23mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 6,900 lbf
Dynamic Load 10,700 lbf
Speed Limit 12,000 RPM
Country of Origin China
Interchange Numbers 7308A-USBC
