Product Description

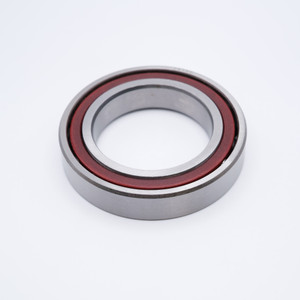

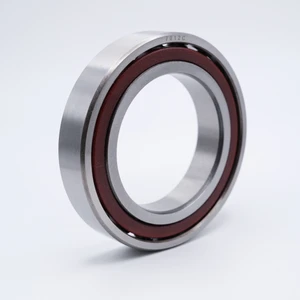

7308B Angular Contact Ball Bearing
Key Features
7308B is a Precision Angular Contact Ball Bearing with a 40 Degree Phenolic Cage. Phenolic cages are lightweight and strong making them ideal for high speed applications and the 40 degree angular contact provides an increase in thrust load capacity relative to the inner and outer raceways. 7308B also has Universal Mounting and comes pre-Lubricated with Light Oil.
Applications / Industries
7308B Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 40mm
Outer Diameter 90mm
Width 23mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 6,900 lbf
Dynamic Load 10,700 lbf
Speed Limit 9,200 RPM
Country of Origin China
Interchange Numbers 6308-2Z, 21308CCK, 7308B, 21308EK, 6308-Z, 21308E, 31308, 31308, 7308B, 21308CCK
