Product Description

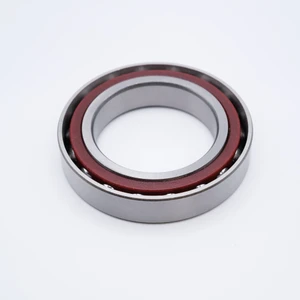

7309A Angular Ball Bearing
Key Features
7309A is a Precision Angular Contact Ball Bearing with an ABEC1 Precision Rating and a 30 Degree Phenolic Cage. Phenolic cages are lightweight and strong making them ideal for high speed applications. 30 degree angular contact bearings are capable of withstanding both radial and axial loads. 7309A also has Universal Mounting and comes pre-lubricated with Light Oil.
Applications / Industries
7309A Angular Contact Ball Bearings are used in a range of applications from Materials Handling, Machine Tools, Steel Mills, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills, among others.
Product Videos
Custom Field
Inner Diameter 45mm
Outer Diameter 100mm
Width 25mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 9,000 lbf
Dynamic Load 13,300 lbf
Speed Limit 10,000 RPM
Country of Origin China
Interchange Numbers 7309.E.T.P4A.UL, 7309ATGAP4, 2309HDL, ME2309DL, 7309A5TYNSULP4, S6309ETAP4UL
