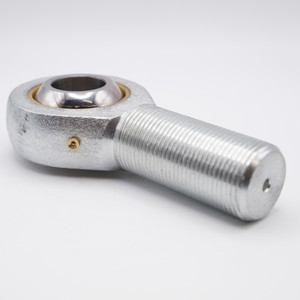

POS8 Rod-End Bearing
Key Features
POS8 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POS8 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
POS8 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, and Textile Manufacturing Equipment, Cars, Trucks, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 8mm
Base to Center 42mm
Overall Height 53mm
Outer Diameter 22mm
Thread Size M8x1.25
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated Housing with Brass Cage
Lubrication Light Oil
Static Load 1,942 lbf
Dynamic Load 1,576 lbf
Country of Origin Japan
Interchange Numbers GAKFR8PB, SAKAC8M, SM8, AM-M8, MM-M8, SA8, POS08, CM-M8, SAKAC8M, GAKF8PB, SA8NIRO, SABP8S, TSM8, BNM8
