Product Description

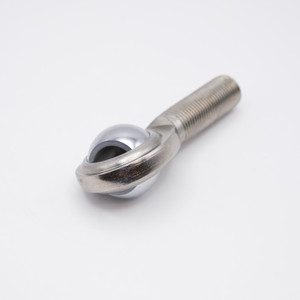

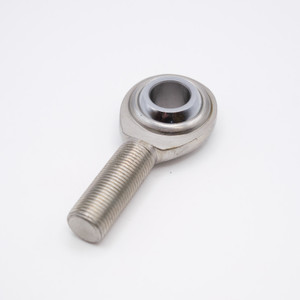

AM-M8 Rod-End Bearing
Key Features
AM-M8 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. AM-M8 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
AM-M8 Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Automotive Industry, Conveyor System Components, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 8mm
Base to Center 42mm
Overall Height 53mm
Outer Diameter 22.25mm
Thread Size M8x1.25
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 7,449 lbf
Country of Origin USA
Interchange Numbers GAKFR8PB, SAKAC8M, SM8, AM-M8, MM-M8, SA8, POS08, CM-M8, SAKAC8M, GAKF8PB, SA8NIRO, SABP8S, TSM8, BNM8
