Product Description

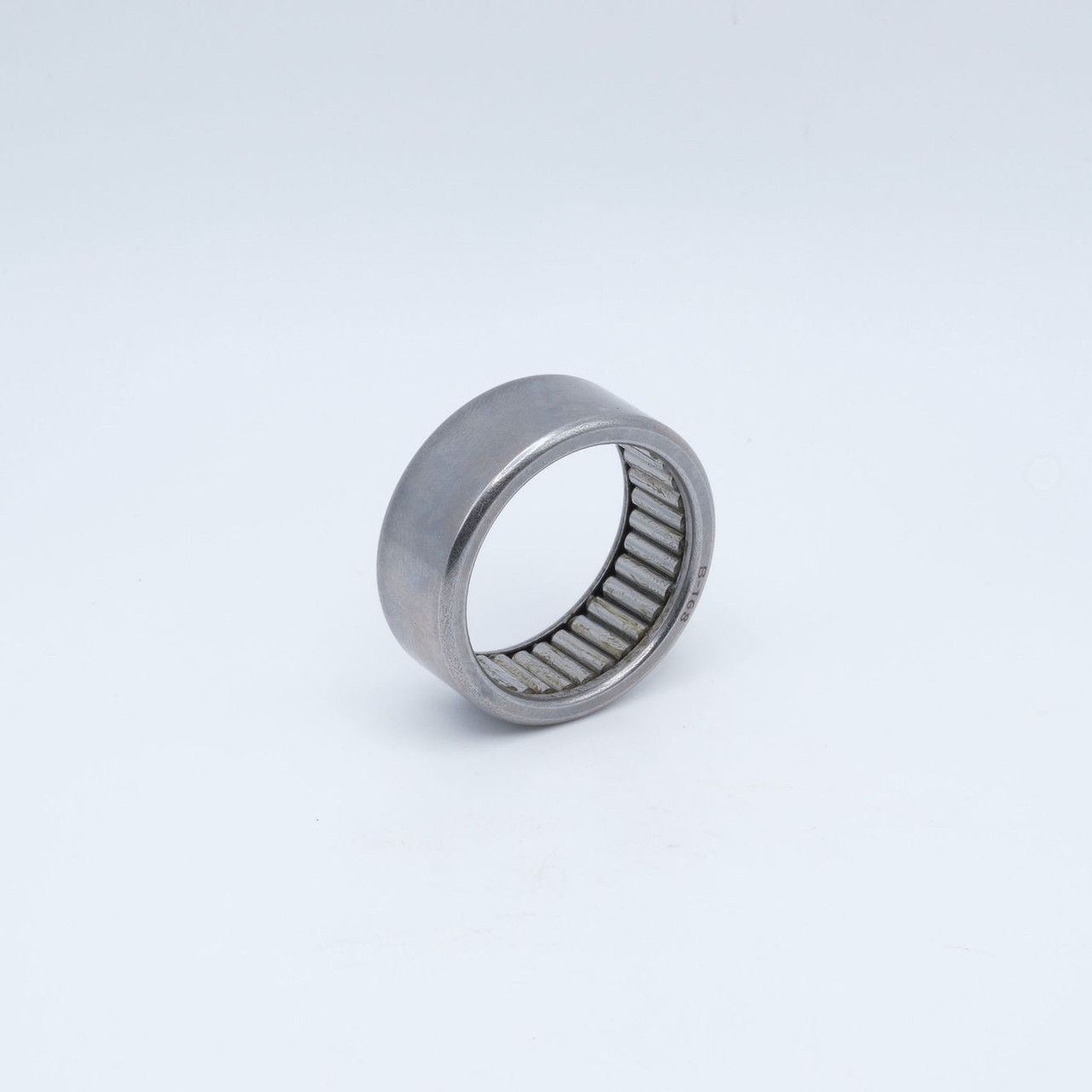

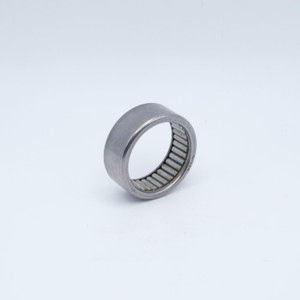

B2824 is a Full Compliment Drawn Shell Cup Needle Roller Bearing that is suitable for applications with high dynamic loads. This bearing features a full compliment of rollers on the inner race instead of a steel cage, granting it a much higher load capacity. Our Drawn Shell Cup Needle Roller Bearings have also been pre-lubricated with Light Oil, ensuring they are ready for immediate use upon delivery.
Sizes: ID 1.750" x OD 2.125" x W 1.500" = ID 44.45mm x OD 53.98mm x W 38.10mm
Interchange: B2824, S2824, CS2824
Applications: Compressors, Universal Joints, Gearbox Layshaft, First Motion Shafts, Two-cycle Engines, Transmissions.
Product Videos
Custom Field
Inner Diameter 1-3/4"
Outer Diameter 2-1/8"
Width 1-1/2"
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 44,800 lbf
Dynamic Load 17,700 lbf
Speed Limit 3,700 RPM
Country of Origin China
Interchange Numbers B2824, S2824, CS2824
