Product Description

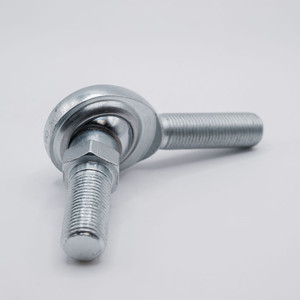

CM7TY is an Inch Sized Male Rod End Bearing manufactured with a Stud, a Right Hand Thread and a PTFE Lining. Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. This bearings consists of a spherical swivel with a cylindrical bore pressed into a male housing with a right hand thread and a stud insert into the bore. CM7TY is made from chrome steel and features a PTFE lined race which allows the ball to slide without the use of lubrication or the need to relubricate the bearing.
Sizes: 1-1/8" OD x 1-3/8" Thread Length x 7/16-20 Thread Size
Applications: Rod End Bearings are used in a variety of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Assembly Line Equipment, Conveyor Systems, Construction Equipment, Industrial Machines, among others.
