Product Description

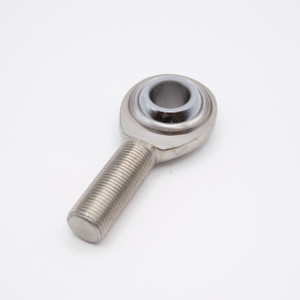

CML8T Inch Sized Rod End
Key Features
CML8T is an Inch Sized Rod-End with a PTFE Liner and a Right Hand Thread. Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. This bearing features a PTFE Liner with allows the bearing to function without the use of lubricant.
Applications / Industries
CML8T Inch Sized Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Conveyor Systems, Trucks, Automation Control Components, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 1/2"
Outer Diameter 1-5/16"
Overall Height 3-3/32"
Base to Center 2-7/16"
Thread Size 1/2-20
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 5,328 lbf
Country of Origin China
Interchange Numbers CML8T
