Product Description

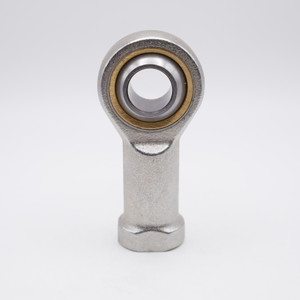

CW-4 Rod-End Bearing
Key Features
CW-4 bearing is a Female Rod End PilloBall Insert Type with a Left Handed Thread Ball Joint Bearing built in a Zinc Chromate Plated Body. CW-4 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. CW-4 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
CW-4 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, and Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 1/4"
Outer Diameter 3/4"
Overall Height 1-11/16"
Base to Center 1-5/16"
Thread Size -28UNF
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with Brass Cage
Lubrication Light Oil
Static Load 2,968 lbf
Dynamic Load 1,032 lbf
Country of Origin USA
Interchange Numbers CW4, MW-4, KW4, AW-4, SW-4
