Product Description

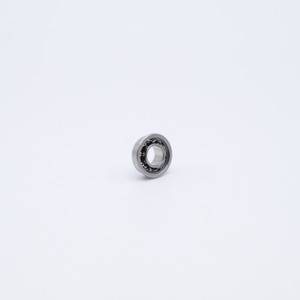

FR155 Mini Ball Bearing
Key Features
FR155 is a Precision Miniature Flanged Ball Bearing manufactured to have both sides Open and is pre-lubricated with Light-Oil allowing it to be ready for use upon delivery. Made from Chrome Steel, FR155 is an FR Series Miniature Flanged Ball Bearing that features a Steel Flange located on the outer ring of the bearing to allow for easier locating on a housing while also preventing any axial movement of the bearing in the event of a thrust load being put onto it.
Applications / Industries
FR155 Miniature Inch ball bearings are widely used in various industries and everyday applications such as Miniature Engines, Robotics, Dental Equipment, Watches, 3D Printers, Testing Instruments, Pressure Rotors, Household Electrical Appliances, Surveillance Systems, among others.
Product Videos
Custom Field
Inner Diameter 5/32"
Outer Diameter 5/16"
Width 7/64"
Closure Type Open
Material Chrome Steel SAE-52100
Lubrication Light-Oil
Static Load 33 lbf
Dynamic Load 82 lbf
Speed Limit 53,000 RPM
Country of Origin China
Interchange Numbers RIF-5532, 5532CF, FR155, ULK5010, FR-155
