Product Description

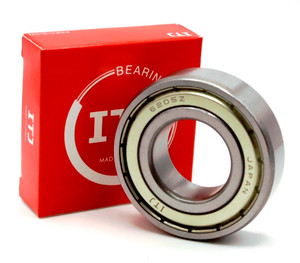

6220ZZ/C3 bearing is Precision Radial High Quality Ball Bearing Both Sides Metal Shileded with C3 internal clearance and pre-lubricated with high speed grease ready to use.
Sizes: ID 100mm x OD 180mm x W 34mm = ID 3.937" x OD 7.0866" x W 1.3386" Inches
Interchange : 6220ZZC3, 6220-2Z/C3, 6220-2ZC3, 6220.2ZR.C3, 6220-ZZC3, 6220ZZEMQC3, 6220ZZCM, 6220ZEM, 220KDDC3, 6220ZZEMQ
Product Videos
Custom Field
Inner Diameter 100mm
Outer Diameter 180mm
Width 34mm
Closure Type Metal Shielded
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 20,900 lbf
Dynamic Load 27,500 lbf
Speed Limit 3,300 RPM
Country of Origin Japan
Interchange Numbers 6220ZZC3, 6220-2Z/C3, 6220-2ZC3, 6220.2ZR.C3, 6220-ZZC3, 6220ZZEMQC3, 6220ZZCM, 6220ZEM, 220KDDC3, 6220ZZEMQ
