Product Description

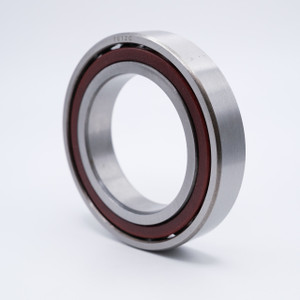

7304C is an ABEC1 Precision Angular Contact Bearing with a 15 degree phenolic cage. Phenolic cages are lightweight and strong making them ideal for high speed applications and 15 Degree angular contact bearings deliver more dial capacity and performance. This bearing has also been pre-lubricated with light oil, allowing it to be immediately used upon delivery.
Sizes: ID 20mm x OD 52mm x W 15mm = ID 0.787" x OD 2.047" x W 0.591"
Interchange: 7304.C.T.P4A.UL, 7304CTGAP4, 304HDL, ME1304DL, 7304CTYNSULP4, S6304CTAP4UL, 304KRDS-BKE#7
Applications: Materials Handling, Machine Tools, Wind Energy Industries, Gearboxes, Pumps, Electric Motors, Clutches, Compressors, Industrial Generators, Steel Mills and other High-Speed Applications.
Product Videos
Custom Field
Inner Diameter 20mm
Outer Diameter 52mm
Width 15mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 2,100 lbf
Dynamic Load 4,200 lbf
Speed Limit 31,000 RPM
Country of Origin Japan
Interchange Numbers 7304.C.T.P4A.UL, 7304CTGAP4, 304HDL, ME1304DL, 7304CTYNSULP4, S6304CTAP4UL, 304KRDS-BKE#7
