Product Description

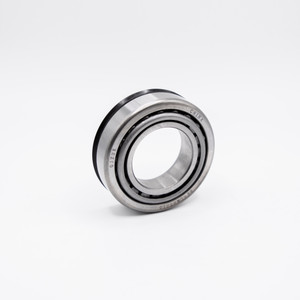

LM67000LA/10 is a High Quality Tapered Roller Bearing Set consisting of a Cup, or outer race, and a Cone, or inner race. The cup is used as a race for the cone, which consists of an inner ring, rollers, cage and a rubber seal added to the bottom of the cone. These parts of the bearing are detachable, the cone assembly is narrower in one end and the races are built with one side narrower as well to match the rollers. This design makes this bearing capable of supporting heavy loads in both axial and radial directions, making it ideal for applications where high speeds, heavy loads and low friction is needed.
Sizes: ID 1.25" x OD 2.33" x W 0.63" = ID 31.75mm x OD 59.18mm x W 16mm
Interchange:
Product Videos
Custom Field
Inner Diameter 1-1/4"
Outer Diameter 2-21/64"
Width 5/8"
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 9,330 lbf
Dynamic Load 7,756 lbf
Speed Limit 6,300 RPM
Country of Origin Japan
Interchange Numbers LM67000LA , LM67010, 4T-LM67000LA , 4T-LM67010 , ASSY902A2, LM67000XL, 51735322, JD8903, 50117, 87566351
