Product Description

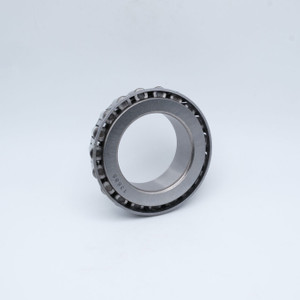

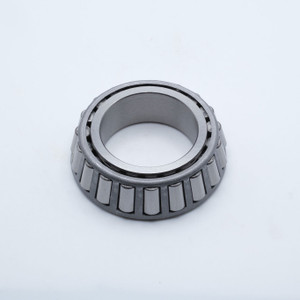

LM12748 Tapered Roller Cone
Key Features
LM12748 Tapered Roller Bearings consist of a cone. The inner ring, rollers, and cage assembly make the cone. The cone assembly is narrower in one end and the races are built with one side narrower as well to match the rollers. This design makes this bearing capable of supporting heavy loads in both axial and radial directions. Our LM12748 Tapered Roller Bearings are ideal for environments where high speed and heavy loads occur, and low friction is needed.
Applications / Industries
LM12748 Tapered Roller Bearings are designed for many applications such as Gearboxes, Hoisting Equipment, Rolling Mills, Mining Industry Machines, Steer axle, Drive axles, Pusher axles, Tag axles, Engines, and Propellers.
Product Videos
Custom Field
Inner Diameter 7/8"
Width 0.61"
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 6,740 lbf
Dynamic Load 5,850 lbf
Speed Limit 8,000 RPM
Country of Origin China
Interchange Numbers A34, S34, SET34, LM12748, LM12710, 4T-LM12748, 4T-LM12710
