Product Description

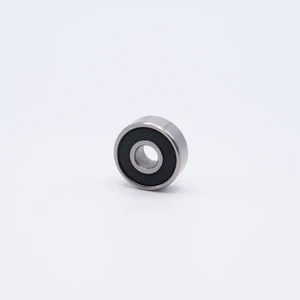

LR608NPPU Miniature Ball Bearing
Key Features
LR608NPPU is a Miniature Ball Bearing manufactured with a Crowned Outer Surface and is most commonly used in applications where friction must be reduced. LR608NPPU has Rubber Seals on both sides to prevent dust & debris from entering the bearing and is pre-lubricated with grease to allow it to be ready for use upon delivery. Our 600 Series Bearings have Larger OD which assists in high speed & larger load application.
Applications / Industries
LR608NPPU Miniature Ball Bearings are used in a range of applications from Electric Motors to Idler wheels, Robotic Systems, Dental Equipment, Medical Equipment, High Speed Applications, Washing Machine, among others.
Product Videos
Custom Field
Inner Diameter 8mm
Outer Diameter 24mm
Width 7mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Chevron SRI-2 Grease
Static Load 281 lbf
Dynamic Load 618 lbf
Speed Limit 19,000 RPM
Country of Origin China
Interchange Numbers LR608NPPU, LR608 NPPU, LR608NPP, E608-2RS, 38KVPP, 608RS/24, 608LU-24, 608-2RS/24, LR608RS, LR608-2RS
