Product Description

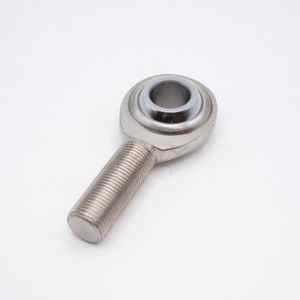

MM-8T Rod-End Bearing
Key Features
MM-8T Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. MM-8T bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank. This MM-8T Rod-End Bearing features a PTFE Liner which reduces friction and overall wear of the bearing overtime.
Applications / Industries
MM-8T Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Transmission Linkages, Conveyor System Components, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 1/2"
Outer Diameter 1-5/16"
Overall Height 3-3/32"
Base to Center 2-7/16"
Thread Size 1/2-20
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 6,660 lbf
Country of Origin USA
Interchange Numbers HM8, HM8G, TRE8, TRE8N, TRE-8N, MM-8, MM8Z, POSB8Z
