Product Description

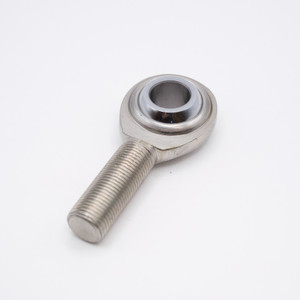

MM-M14T Rod-End Bearing
Key Features
MM-M14T Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. MM-M14T bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank. This MM-M14T Rod-End Bearing features a PTFE Liner which reduces friction and overall wear of the bearing overtime.
Applications / Industries
MM-M14T Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery and Textile Manufacturing Equipment, Motorcycles, Lawn Tractors, Boats, Industrial Machines, Machining Equipment, among others.
Product Videos
Custom Field
Inner Diameter 14mm
Outer Diameter 34.75mm
Overall Height 77.38mm
Base to Center 60mm
Thread Size M14x2.0
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 6,708 lbf
Country of Origin USA
Interchange Numbers HM14, HM14G, TRE14, TRE14N, TRE-14N, MM-14, MM14Z, POSB14Z
