Product Description

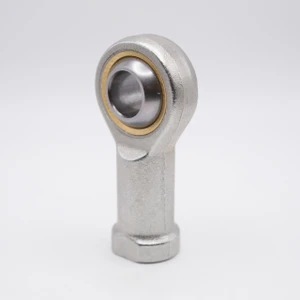

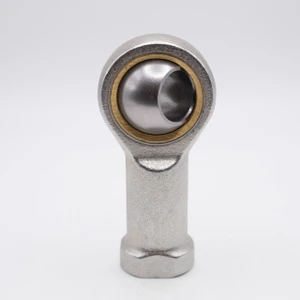

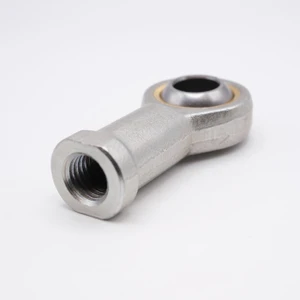

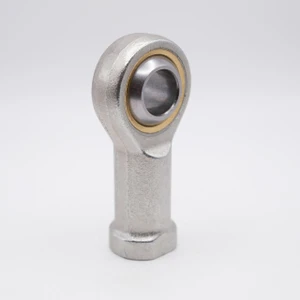

MW-M8 Rod-End Bearing
Key Features
MW-M8 bearing is a Female Rod End PilloBall Insert Type with a Left Handed Thread Ball Joint Bearing built in a body of Die-Cast Special Zinc Alloy. MW-M8 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. MW-M8 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
MW-M8 Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Cars, Trucks, Race Cars, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 8mm
Outer Diameter 22.25mm
Overall Height 48mm
Base to Center 36mm
Thread Size M8X1.25
Thread Direction Left Hand
Material Chrome Steel SAE-52100
Housing Material Chrome Steel SAE-52100
Lubrication Light Oil
Dynamic Load 2,293 lbf
Country of Origin USA
Interchange Numbers GIKR8-PB, SIKOC8M, CW-M8, MW-M8, AW-M8
