Product Description

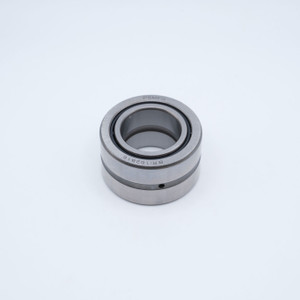

NA6908 bearing is Precision Machined Needle Roller Bearing with Removable Inner Ring in complete Set.
Sizes: ID 40mm x OD 62mm x L 40mm = ID 1.5748" x OD 2.441" x L 1.5748" Inches
Match#: NA6908Z, NA6908J, NA-6908
| Boundary Dimensions in mm | Basic Dynamic Load | Basic Static Load |
Speed Limit RPM |
||||
| C | C0 | ||||||
| d | D | C | B | Fw | N | N | |
| 40 | 62 | 40 | - | 48 | 71,300 | 135,000 | 8500 |
NA6908 Needle roller bearings with machined rings made of bearing steel have a low sectional height and a high load carrying capacity. The NA6908 bearings can be used with or without an inner ring. Needle roller bearings RNA6908 without an inner ring will require the shaft to be hardened, ground and polished.
Product Videos
Custom Field
Inner Diameter 40mm
Outer Diameter 62mm
Width 40mm
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 30,349 lbf
Dynamic Load 16,029 lbf
Speed Limit 8,500 RPM
Country of Origin China
Interchange Numbers NA6908Z, NA6908J, NA-6908
