Product Description

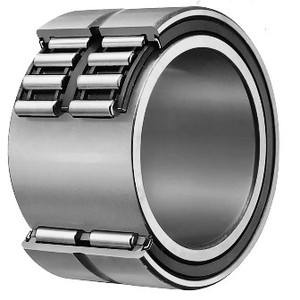

NA6908UU bearing is Precision Machined Needle Roller Bearing with Inner Ring and Rubber Sealed in complete Set and pre-lubricated with light oil to allow them to be ready to use upon arrival.
Sizes: ID 40mm x OD 62mm x L 41mm = ID 1.5748" x OD 2.441" x L 1.6142" Inches
Interchange : NA6908-2RSR, NA6908-2RS, NA6908LL, NA6908UU, NA-6908UU, NA6908TT
| Boundary Dimensions in mm | Basic Dynamic Load | Basic Static Load |
Speed Limit RPM |
||||
| C | C0 | ||||||
| d | D | C | B | Fw | N | N | |
| 40 | 62 | 40 | 41 | 48 | 63,700 | 117,000 | 4000 |

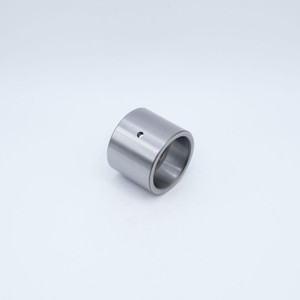

NA6908UU Needle roller bearings with machined rings made of bearing steel have a low sectional height and a high load carrying capacity. The NA6908UU bearings can be used with or without an inner ring. Needle roller bearings RNA6908UU without an inner ring will require the shaft to be hardened, ground and polished.
Product Videos
Custom Field
Inner Diameter 40mm
Outer Diameter 62mm
Width 41mm
Closure Type Rubber Sealed
Material Chrome Steel SAE-52100
Lubrication Light Oil
Static Load 16,635 lbf
Dynamic Load 26,077 lbf
Speed Limit 4000 RPM
Country of Origin China
Interchange Numbers NA6908-2RSR, NA6908-2RS, NA6908LL, NA6908UU, NA-6908UU, NA6908TT
