Product Description

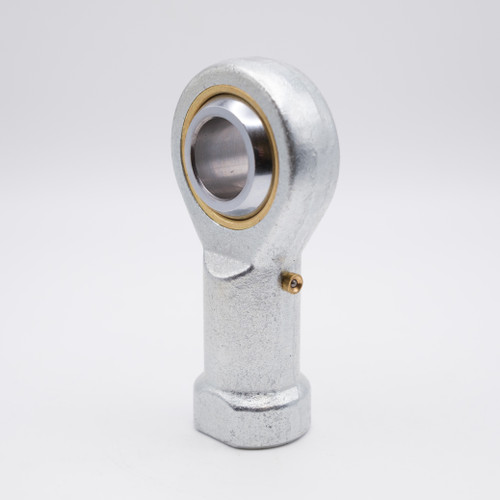

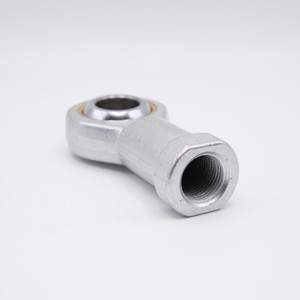

PHSB5L is a Female Rod End PilloBall Insert Type with a Left Handed Thread Ball Joint Bearing built in a Zinc Chromate Plated Body. PHSB5L Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. PHSB5L bearings consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank.
Sizes: 5/16" Bore x 11/16" Thread Length x 5/16-24 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
