Product Description

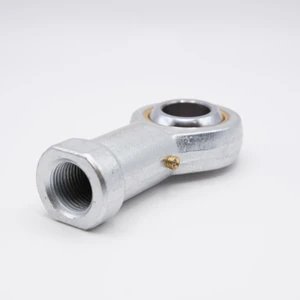

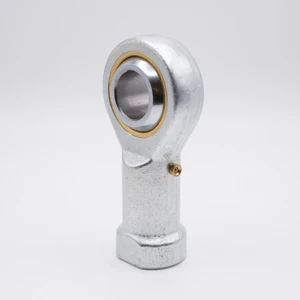

PHSB8 is a Female Rod-End PilloBall Insert Type with Right Handed Thread. Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. PHSB8 bearings consists of a spherical swivel with a cylindrical bore pressed into a female housing with a threaded shank.
Sizes: 1/2" Bore x 1-1/16 Thread Length x 1/2-20 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 1/2"
Outer Diameter 1-5/16"
Overall Height 2-25/32"
Base to Center 2-1/8"
Thread Size -20UNF
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with Brass Cage
Lubrication Light Oil
Static Load 8,138 lbf
Dynamic Load 3,327 lbf
Country of Origin China
Interchange Numbers MW8, CW8, MW-8, AW-8, PF-8, SSPF-8, HF8G, TR8N, TR-8N, F-CR8, AF-GP8, MSF8, EF8, CFF8, CFR8, PHSB8NP
