Product Description

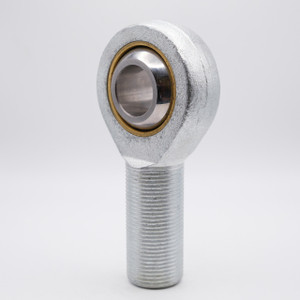

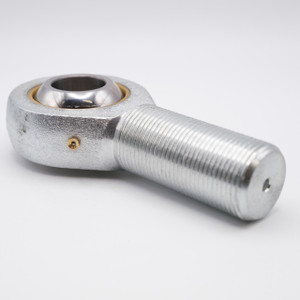

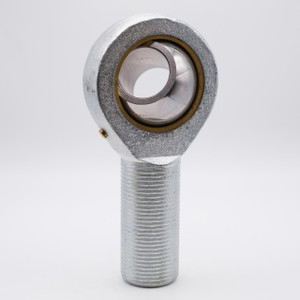

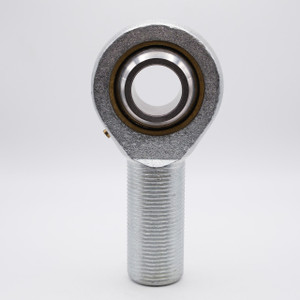

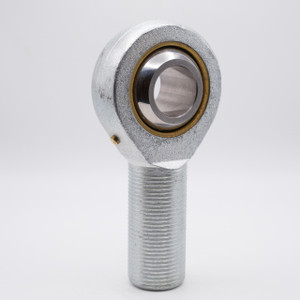

POS20ECL PTFE Lined Rod-End Ball Joint Bearing with 20mm bore and Left Hand Thread. This bearing consists of a chrome steel ball inserted into a zinc plated housing. The housing features a PTFE Liner which allows the bearing to function without the use of lubrication, allowing the bearing to be maintanence-free.
Sizes: 20mm Bore x 47mm Rod x M20x1.5 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 20mm
Outer Diameter 46mm
Overall Height 101mm
Base to Center 78mm
Thread Size M20x1.5
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated with PTFE Liner
Lubrication None
Static Load 6,744 lbf
Dynamic Load 13,848 lbf
Country of Origin China
Interchange Numbers MMCL20K, KAL20D, GALKFR20PW, SALKB20F, SMLCV20, POS20ECL
