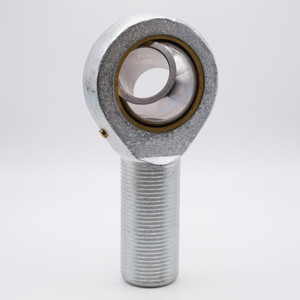

POS3L Rod-End Bearing
Key Features
POS3L Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POS3L bearings consist of a spherical swivel with a cylindrical bore through which a bolt may pass pressed into a housing that has a threaded shank.
Applications / Industries
POS3L Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Conveyor Systems, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 3mm
Base to Center 27mm
Overall Height 33mm
Outer Diameter 12mm
Thread Size M3x0.5
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Zinc Plated
Lubrication Light Oil
Static Load 274 lbf
Dynamic Load 393 lbf
Country of Origin Japan
Interchange Numbers GAL3-DO, JML3M, SMP3M, CB-3M, MB-3M, MB-3MT, POS03L, POS03 L
