Product Description

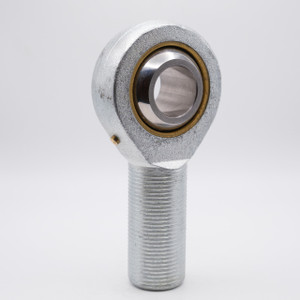

POSA12 Rod-End Bearing
Key Features
POSA12 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSA12 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Applications / Industries
POSA12 Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Agricultural Machinery, Textile Manufacturing Equipment, Transmission Linkages, Conveyor System Components, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 12mm
Outer Diameter 30mm
Overall Height 69mm
Base to Center 54mm
Thread Size 12x1.75
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated
Lubrication Light Oil
Static Load 3,799 lbf
Dynamic Load 2,945 lbf
Country of Origin China
Interchange Numbers HM12, HM12G, TRE12, TRE12N, TRE-12N, MM-12, MM12Z, POSB12Z, POSA12
