Product Description

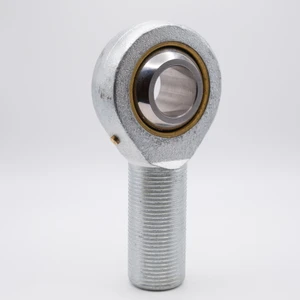

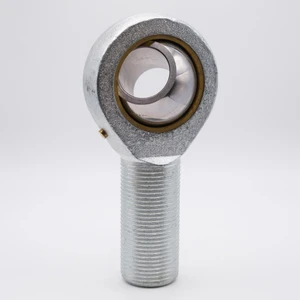

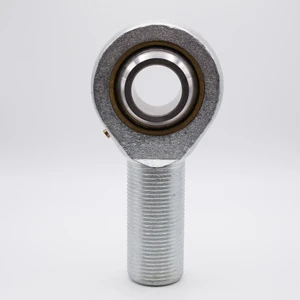

POSB10 Rod-End Bearing with 5/8" Bore and a Right Hand Thread, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB10 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Sizes: 5/8" Bore x 1-5/8" Rod x 5/8-18 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 5/8"
Outer Diameter 1-1/2"
Overall Height 3-3/8"
Base to Center 2-5/8"
Thread Size -18UNF
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated Housing
Lubrication Light Oil
Static Load 8,835 lbf
Dynamic Load 4,496 lbf
Country of Origin China
Interchange Numbers HM10, HM10G, TRE-10, TRE10N, TRE-10N, MM-10, MM-10Z, POSB10Z
