Product Description

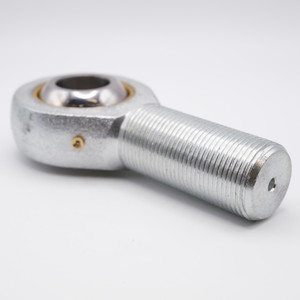

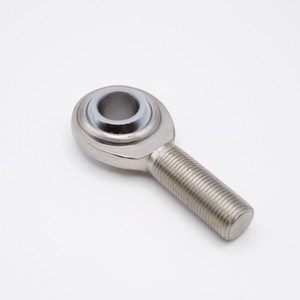

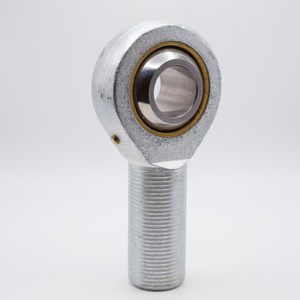

POSB10L Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB10L bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Sizes: 5/8" Bore x 1-5/8" Rod x 5/8-18 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 5/8"
Outer Diameter 1-1/2"
Overall Height 3-3/8"
Base to Center 2-5/8"
Thread Size -18UNC
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated
Lubrication Light Oil
Static Load 8,835 lbf
Dynamic Load 4,496 lbf
Country of Origin China
Interchange Numbers HML10, HML10G, TREL-10, TREL10N, TREL-10N, MB-10, MB-10Z, POSB10LZ
