Product Description

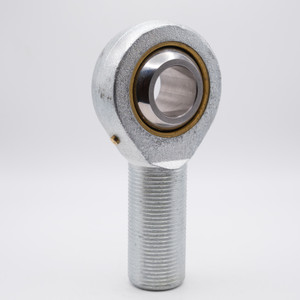

POSB16L Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB16L bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Sizes: 1" Bore x 2-1/8" Rod x 5/4-12 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 1"
Outer Diameter 2-3/4"
Overall Height 5-1/2"
Base to Center 4-1/8"
Thread Size -12UNC
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated
Lubrication Light Oil
Static Load 25,179 lbf
Dynamic Load 13,331 lbf
Country of Origin China
Interchange Numbers HML16, HML16G, TREL-16, TREL16N, TREL-16N, MB-16, MB-16Z, POSB16LZ
