Product Description

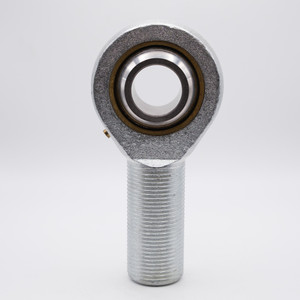

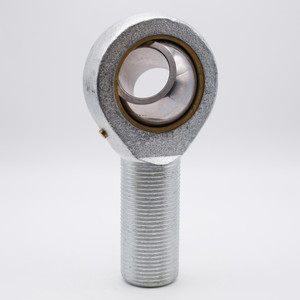

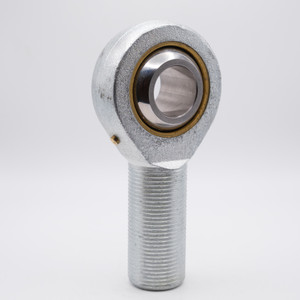

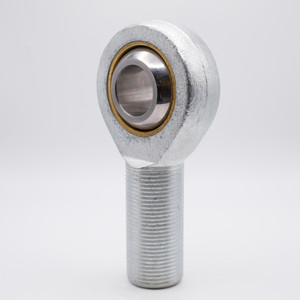

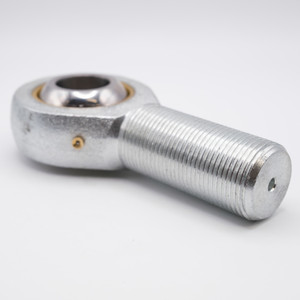

POSB3 Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB3 bearings consists of a spherical swivel with a cylindrical bore pressed into a housing with a threaded shank.
Sizes: 3/16" Bore x 3/4" Rod x 10-32 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Trucks, Automation Control Components, Motorcycles, Lawn Tractors, Boats, Industrial Machines, among others.
Product Videos
Custom Field
Inner Diameter 3/16"
Outer Diameter 5/8"
Overall Height 1-9/16"
Base to Center 1-1/4"
Thread Size -32UNF
Thread Direction Right Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated
Lubrication Light Oil
Static Load 1,090 lbf
Dynamic Load 778 lbf
Country of Origin China
Interchange Numbers HM3, HM3G, TRE-3, TRE3N, TRE-3N, MM-3, MM-3Z, POSB3Z
