Product Description

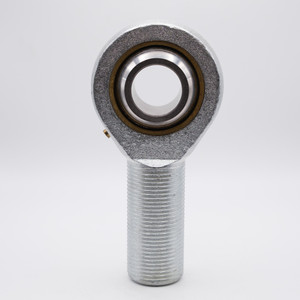

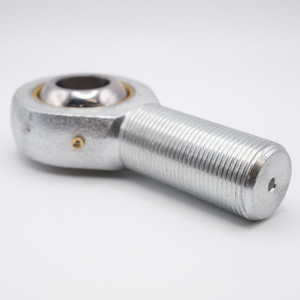

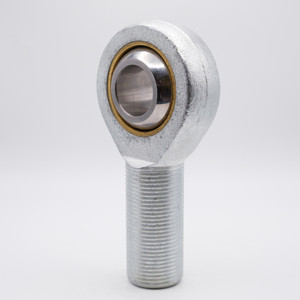

POSB5L Rod-End Bearings, also called heim joints or spherical rod ends, are articulating joints that are attached to the ends of tie rods, steering links, and cylinders to provide a transfer of motion and force between two points. POSB5L bearings consists of a spherical chrome steel swivel with a cylindrical bore pressed into a Nickel plated housing with a left hand threaded shank.
Sizes: 5/16" bore x 1-1/4" Rod x 5/16-24 Thread Size
Applications: Rod-End Bearings are used in a range of applications from Agricultural Machinery to Steering Linkages, Textile Manufacturing Equipment, Conveyor Systems, Pneumatic Cylinders, Construction Equipment, Exercise Machines, Factory Automation, among others.
Product Videos
Custom Field
Inner Diameter 5/16"
Outer Diameter 7/8"
Overall Height 1-15/16"
Base to Center 1-7/8"
Thread Size -24UNC
Thread Direction Left Hand
Ball Material Chrome Steel SAE-52100
Housing Material Nickel Plated
Lubrication Light Oil
Static Load 3,192 lbf
Dynamic Load 1,528 lbf
Country of Origin China
Interchange Numbers HML5, HML5G, TREL-5, TREL5N, TREL-5N, MB-5, MB-5Z, POSB5LZ, POSB5L
